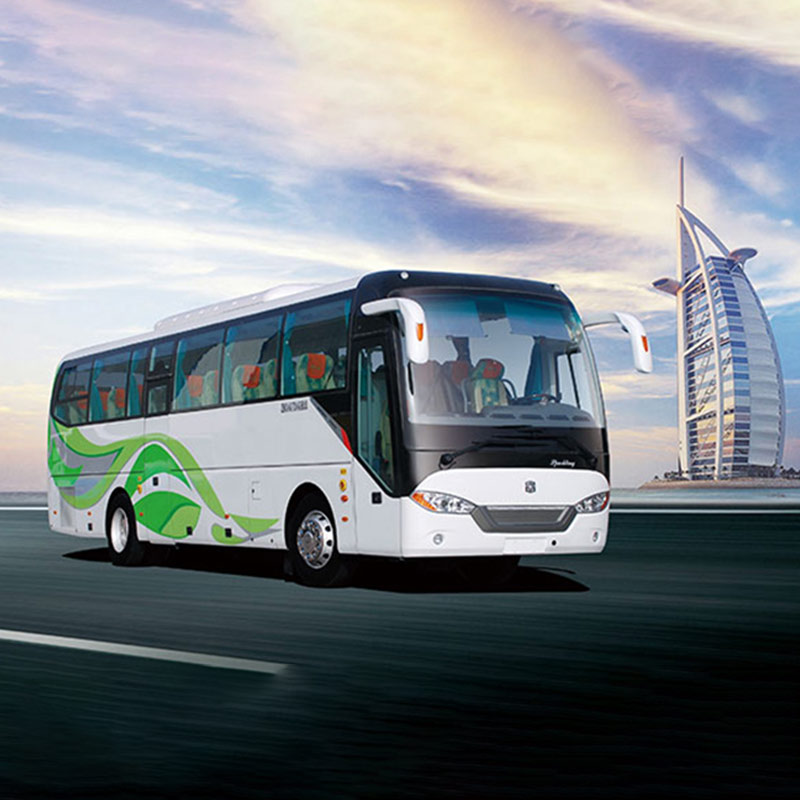

Coaches refer to a more luxurious form of bus. Coaches are more likely to be chartered for long distances, such as between cities or even between countries.
Coaches provide comforts that buses do not have. It typically have cavernous luggage compartments beneath the passenger area, and equipped with larger, comfortable plush seats, offering a more comfortable travel.
| Coach Bus parameters | |||
| LCK6395H Coach | LCK6107H | LCK6125H | |
| total length (mm) | 9345 | 10500 | 11990 |
| total width (mm) | 2480 | 2500 | 2540 |
| total height (mm) | 3350 | 3620 | 3620 /3700 |
| inner height (mm) | 1940 | 2060 | 2060 |
| wheelbase (mm) | 4600 | 5170 | 6000 |
| front/rear suspension (mm) | 1970/2775 | 2150/3180 | 2585/3405 |
| approach angle/departure angle (º) | 11/9 | 11/9 | 8.5/8.5 |
| height of a single step (mm) | 420 | 430 | 380 |
| max total mass set by factory (kg) | 12700 | 15000 | 18000 |
| rated capacity (person) | 37+1+1 | 24-58 | standard 49+1+1 |
| max speed (km/h) | 100 | 120 | 120 |
| luggage compartment volume | 3.4 (3.9) | 4.6 (through type) | 8 (through type) |
| Engine Specification | |||
| model | WP7.240E30/YC6J245-30/ ISB6.7E5225B/ISDE245 40 | WP7.270E30/ISDE 270 30/ ISB6.7E5285/C245 20/YC6G270-20 | WP10336N/ISLe375 30/ISLE+350/L360 20 |
| manufacturer | Weichai/Yuchai/Cummins/DCEC | Yuchai/DCEC /Cummins/DCEC/Yuchai | Weichai/ DCEC/Cummins/ DCEC |
| position/fuel | diesel | rear, diesel | rear/diesel |
| type | inline-six cylinder, four-stroke, water-cooling, intercooling | 6 cylinder, intercooling | straight 6-cylinder, 4-stroke, water cooling, intercooling, direct injection |
| max power (kw) | 176/180/166/180 | 199/198/285/180/199 | 247/275/257/264 |
| max torque (N.M) | 1000/890/850/925 | 1000/970/1020/1025/1080 | 1500/1550/1550/1480 |
| displacement (ml) | 7140/6500/6700/6700 | 7140/6690/6700/8900/7800 | 9726/8900/8900/8900 |
| cylinder diameter × stroke (mm) | 108×130//105X125/107X124/107X124 | 108*130/107×124/107X124/114X135/112X132 | 126X130/114X144.5/114X144.5 |
| Chassis parameters | |||
| gearbox | Qijiang S6-100; option: Allison T270R optional for ISBE4 +225B | Qijiang 6S-100 (only for ISDE 270 30); Option: Jijiang S6-90/ QJ1205 manual gearbox ; Option: Allison T325 automatic gearbox (ISB6.7E5285) | Qijiang S6-160 |
| clutch | φ395, single plate, dry clutch; Option: φ420 dry monolithic clutch for WP7.240E30 | single plate, dry, spiral spring clutch, φ420 | imported clutch, φ430 single plate, dry wheel cylinder |
| front axle | 4.2T | 5.5t front axle | Dongfeng Dana 6.5T |
| rear axle | 9T | 11T | Dongfeng Dana 13T |
| suspension | multiple leaf spring 7/11 ; option: air suspension (2/4 airbag) | air suspension with 6 airbag; Option: multiple leaf spring (front 8, rear 11) | air suspension with 6 bags; Option: multi-leaf spring (front 10/rear 11) |
| steering | integral power steering | integral power steering | integral power steering; Option: ZF8098 |
| brake | double circuit air brake, drum brake, KORMEE ABS Option: automatic gap adjusting arm, front-disc rear-drum brake | double circuit air brake, front-disc rear-drum brake, KORMEE ABS, automatic gap adjusting arm, retarder; Option: WABCO ABS, rear disc brake | front-disc rear-drum brake, KORMEE ABS, automatic adjusting arm, eddy current retarder; Option: Telma eddy current retarder, VOITH hydrodynamic retarder |
| fuel tank | 200L, behind front axle Option: 300L | 250L×2; Option: 115L×2 | 300L*2 |
| tire | 10R22.5 | 11R22.5 (double coin), 6+1 | 295/80R22.5 (Giti) Option: 295/80R22.5 (Michelin) |
| accumulator/alternator | 165A.h/150A+120A，140A+120A (Cummins engine) | 2X195Ah/ 150A +120A, Cummins engine (140A+120A) | 195Ah /150AX2 (Prestolite) |
| others | oil-water separator, dryer, clutch booster, air brake, retarder Option: electromagnetic clutch, centralized lubrication | ||
| seat | 2+2 arrangement; 37+1+1 seats; adjustable ZTZY3170 seat; folding armrest; safety belt for each seat; driver’s seat ZTZY1050 Option: lateral movement or pedal; ZTZY2070 tour guide seat | Zhongtong ZTZY3210 luxury aero seat (adjustable armrest and backrest); ZTZY1050 driver’s seat; 35+1 ; Option: safety belt for each seat; lateral movement and pedal; ZTZY2020 tour guide seat; ZTZY1052 driver’s seat with airbag | Zhongtong ZTZY3210 luxury aeronautic seats (with adjustable armrest and adjustable backrest); ZTZY1050 driver’s seat; 49+1+1 Option: safety belt for all seats; lateral movement; pedal; ZTZY2020 tour guide seat; ZTZY1052 driver seat with airbag |
