City bus is a new product provide by Zhongtong, based on the features of intercity traffic. It is designed with the appearance and structure of urban bus for better convenience.

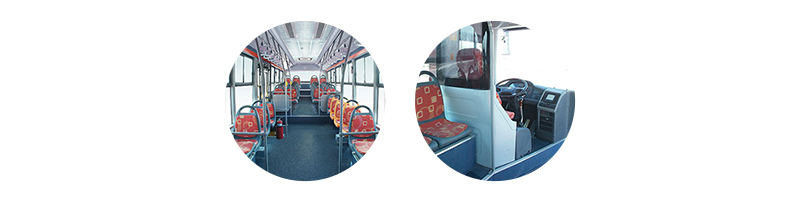

The city bus is designed with the appearance of a public transport bus. It is equipped with armrests and 2+2 seat layout. Passengers can stand at the aisle. Luggage compartment is available inner the bus. The outside of the front part of the bus is a combination of 4 structures for the convenience of checking inner components.
Six-speed transmission is adopted according to the characteristics of intercity traffic. Instantaneous fuel consumption meter is equipped to assist the driver to keep the bus running at best efficiency.
Simple uniaxial hinge is adopted for the side door to enhance reliability and sealability. Air conditioner and heater is equipped with automatic control. Anti-collision beams are equipped at the front and rear of the bus to enhance its’ safety.
| Bus Specification | LCK6950HG | LCK6105HGC | LCK6125G | ||||
| total length (mm) | 9500 | 10500 | 11990 | ||||
| total width (mm) | 2500 | 2500 | 2540 | ||||
| total height (mm) | 3120, 3280 (with air conditioner) | 3120, 3455 (natural gas state) | 3260 , 3170 | ||||
| inner height (mm) | 2300 | 2280 | 2220 | ||||
| wheelbase (mm) | 4500 | 5000 | 6000 | ||||
| front/rear suspension (mm) | 2225/2775 | 2320/3180 | 2670/3320 | ||||
| approach angle/departure angle (º) | 10.4/8.6 | 7.6/7.9 | 8月7日 | ||||
| height of single step (mm) | ≤380 | ≤380 | ≤380 | ||||
| max total mass defined by factory (kg) | 13200 | 16000 | 17550 | ||||
| rated capacity (person) | 62/27+3+1 | 25+3+1 | standard 36+1 | ||||
| max speed (km/h) | 69 | 90 | |||||
| Engine | |||||||
| model | WP6.210 | BGE5 230/ YC6G230N-40 | ISDe245 31 | ||||
| manufacturer | Weichai | Xigang/Cummins/Yuchai | Dongkang | ||||
| position/fuel | rear/diesel | natural gas | rear/diesel | ||||
| type | straight 6-cylinder, water cooling, intercooling | straight 6-cylinder, 4-stroke, water cooling, turbocharging, intercooling, direct injection | straight 6-cylinder, water cooling, turbocharging, intercooling, direct injection | ||||
| max power (kw) | 155 | 169/170 | 180 | ||||
| max torque (N.M) | 760 | 678/850 | 925 | ||||
| displacement (ml) | 6750 | 5900/7800 | 6700 | ||||
| cylinder diameter × stroke (mm) | 105X130 | 102*120/112*132 | 107*124 | ||||
| Standard configuration | |||||||
| gearbox | ZD.F6S850 mechanical manual 6-speed transmission | Allison T270R | QJ1205 gear box, with Ⅰ and reverse gear set beside driver’s seat | ||||
| clutch | Φ395 single plate, dry, diaphragm spring, imported clutch, hydraulic control | single plate, dry, helical spring | |||||
| front axle | Dongfeng Dana, 4.2 T, disc brake | Dongfeng Dana 7.5t door type front axle | Dongfeng Dana 6.5T | ||||
| rear axle | Dongfeng Dana, 9T (precision grinding gear); disc brake | Dongfeng Dana 11t | Dongfeng Dana 13T | ||||
| suspension | leaf spring; 5 for front/5 for rear | Komman air suspension | leaf spring 4/5 | ||||
| steering | integral power steering gear | integral power steering gear | ZF8098 integral power steering gear | ||||
| brake | double circuit air brake / drum brake ; dryer; condenser | double circuit air brake / drum brake ; dryer; WABCO ABS&ASR | double circuit air brake / drum brake, oil-water separator, dryer; Option: Eddy current retarder (1500N.M) | ||||
| fuel tank | 200L | 7×80L CNG natural gas cylinder from Tianhai; installed overhead; with glass steel cover | 200L | ||||
| tire | 10R22.5 (Double Coin); quantity: 7 | 275/70R22.5; quantity: 6 | 275/70R22.5; quantity: 6 | ||||
| accumulator/alternator | 165A.H×2/150A (Aobo) 24V | 195A.h×2/110A 24V | 195A.H×2/110A 24V; Option: engine: 150A, 24V (retarder state) | ||||
| Others | wipers with scrubber | WABCO dryer; Autol lubrication system; bus body lift system from Knorr; gas pre-filter from Donaldson; fan from Horton | |||||
| seat | ZTZY8061 seats for public transport vehicle; 1021 adjustable driver’s seat; 3-point ECE safety belt; 2 spaces for wheelchair (with black floor mat) | 25+3+1 layout; air suspension type luxury driver seat; ZTZY8050 passenger seat especially for public transport bus; 3 folding chairs | 8050 passenger seat; 1021 adjustable driver’s seat; safety belt and alarming system for driver; helmet for driver seat | ||||
1. who are we?
We are based in Henan, China, start from 2013,sell to Africa(30.00%),Mid East(20.00%),South America(15.00%),South Asia(10.00%),Southeast Asia(10.00%),North America(5.00%),Domestic Market(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Eastern Europe(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dongfeng Commercial Vehicle,Dongfeng Passenger Vehicle,Auto Component,Construction Machinery,Engineering Machinery
4. why should you buy from us not from other suppliers?
Founded in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
