A tractor is a general large truck or semi-trailer that is towed by tools between the front and the box, so the front of the vehicle can be separated from the original box and towing other boxes, and the box can also be separated from the original box and be towed by other vehicles. The front of the vehicle with driving capability is called a tractor, and the vehicle with no driving capability in the back is called a trailer, and the trailer is towed away by the tractor.
There are two ways to connect the tractor and the trailer: The front half of the trailer is placed on the towing saddle above the rear section of the tractor, and the bridge behind the tractor bears part of the trailer’s weight, which is a semi-trailer; Or connecting the front end of the trailer to the rear end of the tractor, the tractor only provides forward pulling force and drags the trailer, but does not bear the weight of the trailer, which is a full trailer.

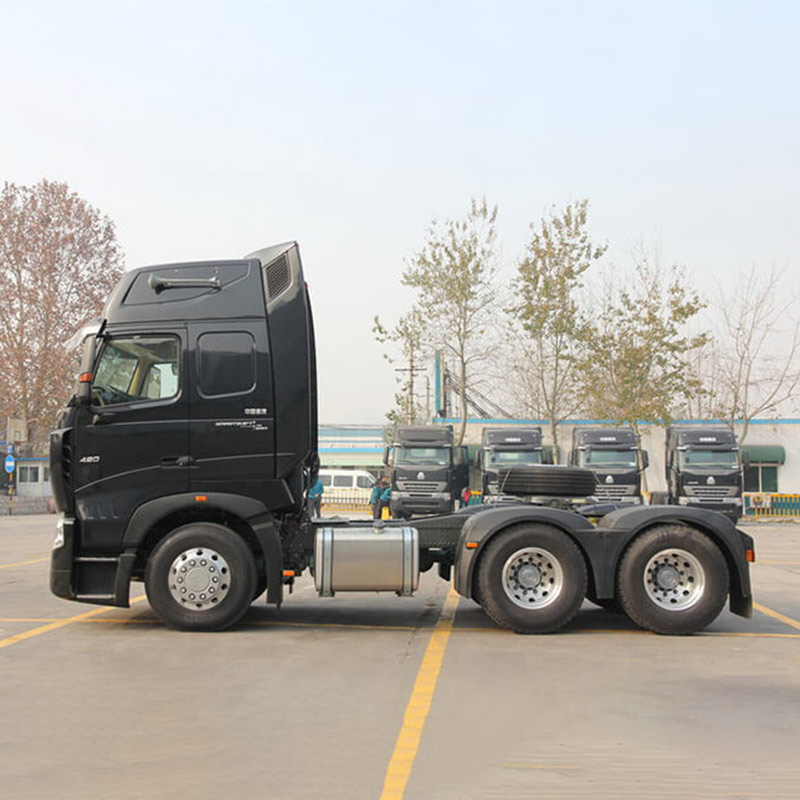

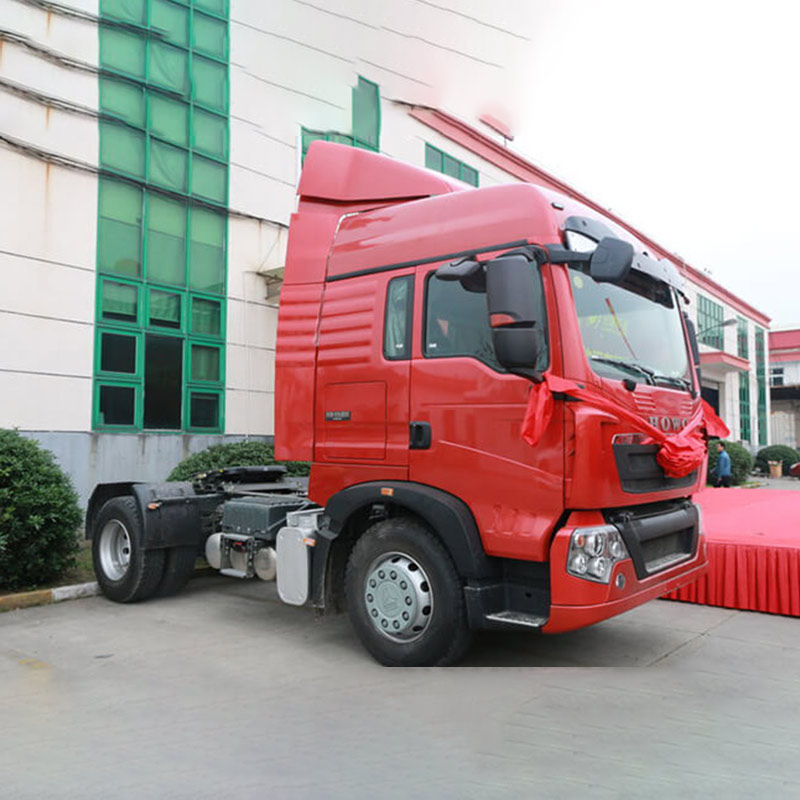

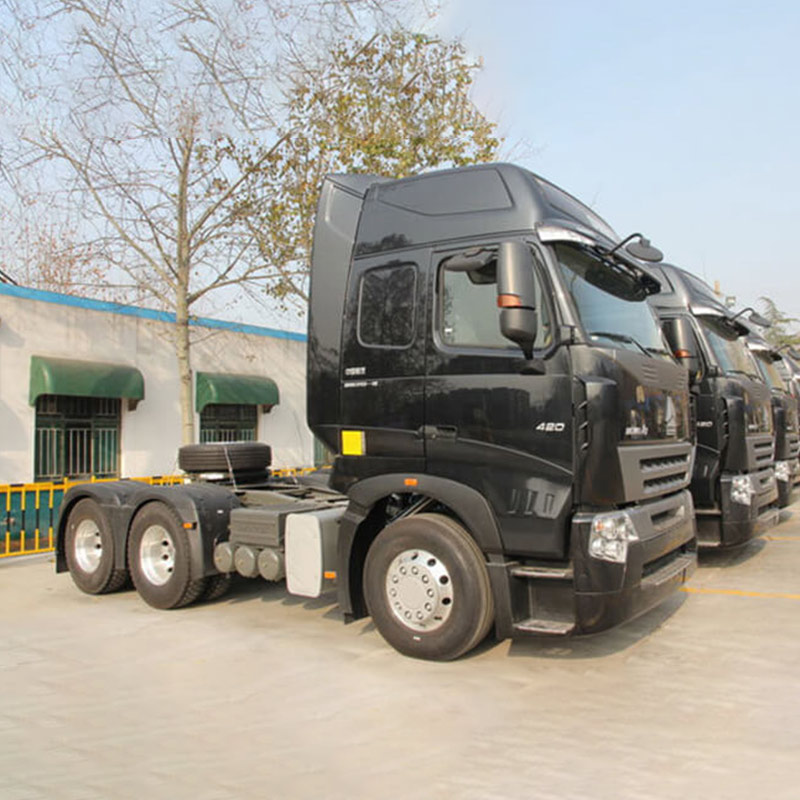

Semi-trailer tractors are commercial vehicles equipped with special devices to tow semi-trailers. The front part of the semi-trailer rests on the tractor that pulls the fifth wheel, and the rear drive axle of the tractor bears part of the weight of the semi-trailer.
It is often used for the transportation of large quantities of goods in or between workshops, such as transportation from the automobile manufacturing warehouse to the assembly line, and luggage transportation at the airport.
| Drive Mode | 4×2 | 6X4 | 6X2 |
| Cab | High floor& high roof Cab, four points Suspension, air Suspension+shock absorber+transverse stablizer, double berth, air Suspension driver seat, up/down and front/back adjustabfe steering wheel, BEHR Euro-type new-style integral a/c heater fan, VDO instrument, CAN bus and electronics control system, double-locking safety belt, electric lifting glass and rearview mirror, three locks combined in one, exterior sun visor, upper/side deflector guide, electronic manual accelerator. | High floor extended cab, four-point air suspension 4 shock absorber 4 transverse stabilizer, splited single berth, air suspension driver’s seat, up/down and front/back adjustable steering wheel, BE HR European- style new integral A/C heater, VOO instrument, CAN bus and electrics control system, safety belt with double locking mechanism, power window and rearview mirror, three locks combined in one, exterior sun visor, top wind deflector 4 side air deflector, electronic hand throttle. | High floor extended cab, four-point air suspension 4 shock absorber 4 transverse stabilizer, splited single berth, air suspension driver’s seat, up/down and front/back adjustable steering wheel, BE HR European- style new integral A/C heater, VOO instrument, CAN bus and electrics control system, safety belt with double locking mechanism, power window and rearview mirror, three locks combined in one, exterior sun visor, top wind deflector 4 side air deflector, electronic hand throttle. |
| Engine Model | D10.34, D10.38, D12.38, D12.42 | MC13.54, MC13.50, MC11.44, MC11.36, MC07.34, D10.27 | WD615.92E, WD615.93, WD615.95E, WD615.96E, MC07.34-50, D10.34 |
| Rated Power kW/rpm | 249/1900, 279/2000, 279/2000, 309/2000 | 540hp, 500hp, 440hp, 360hp, 340hp, 270hp | 270hp, 290hp, 340hp, 380hp |
| Displacement L | 9.726, 9.726, 11.596, 11.596 | 12.419, 11.596, 10.518, 6.870, 9.726 | 12.419, 10.518, 9.726, 6.870 |
| Clutch | Φ430 diaphragm spring Clutch, Hydraulic control air assisted | Φ430 diaphragm spring dutch. hydraulic control air power assisted. | Φ430 diaphragm spring dutch. hydraulic control air power assisted. |
| Transmission | 10 F+2R, 12F + 2R, synchronizer is optional. | 10 F + 2 R, 12F + 2R, synchronizer is optional. | 16 F + 4 R, 12F+2R, 10 F+ 2 R, AMT, MT |
| Braking system | Service brake: duabcircuit air pressure brake; Parking brake: spring storage energy without air; Auxiliary brake: EVB+Engine exhaust braking. With ABS and optional auto clearance adjusting arm. | Service brake: dual-circuit pneumatic brake; parking brake: energy storage spring air cutoff brake; auxiliary brake: EVB ♦ engine exhaust brake. With ABS optional automatic slack adjuster. | Service brake: dual-circuit pneumatic brake; parking brake: energy storage spring air cutoff brake; auxiliary brake: EVB ♦ engine exhaust brake. With ABS optional automatic slack adjuster. |
| Tyre | 315/80R225; 12.00R20 | 315/80R22.5; 12.00R20 | 12.00R20, 11.00-20 |
| Tank volume I | 4001 standard, 600L is Optional | Standard 400L, optional 600L | Standard 400L, optional 600L |
| Towed GVM kg | 35000 | 32000, 35000, 38000, 40000 | 39000, 38400, 37200, 34600, 33600, 31200 |
| Oversize (LxWxH) mm | 6160X2496X3850 | 6900,7300, 7600×2500, 2550×3230, 3650, 3850 | 6600, 6700, 6900,7100×2500, 2550×2960, 3560, 3670 |
| Wheel Base mm | 3200, 3400, 3800 + 1400 | 1800+2300, 1800+2500, 1950+2475, 3225+1365 | |
| Fifth wheel joint face ground clearance (unload) mm | 1325 | 1325, 1390, 1950 | 1325, 1390, 1950 |
