With the rapid development of our country’s economy and the vigorous investment in highway construction, highway transport has become the mainstream transportation in our country. As the main equipment of road transport, semi-trailer tractors are widely used due to their advantages of strong specialization, large loading capacity and fast transportation.
A tractor is a general large truck or semi-trailer that is towed by tools between the front and the box, so the front of the vehicle can be separated from the original box and towing other boxes, and the box can also be separated from the original box and be towed by other vehicles. The front of the vehicle with driving capability is called a tractor, and the vehicle with no driving capability in the back is called a trailer, and the trailer is towed away by the tractor.
There are two ways to connect the tractor and the trailer: The front half of the trailer is placed on the towing saddle above the rear section of the tractor, and the bridge behind the tractor bears part of the trailer’s weight, which is a semi-trailer; Or connecting the front end of the trailer to the rear end of the tractor, the tractor only provides forward pulling force and drags the trailer, but does not bear the weight of the trailer, which is a full trailer.
It is often used for the transportation of large quantities of goods in or between workshops, such as transportation from the automobile manufacturing warehouse to the assembly line, and luggage transportation at the airport.

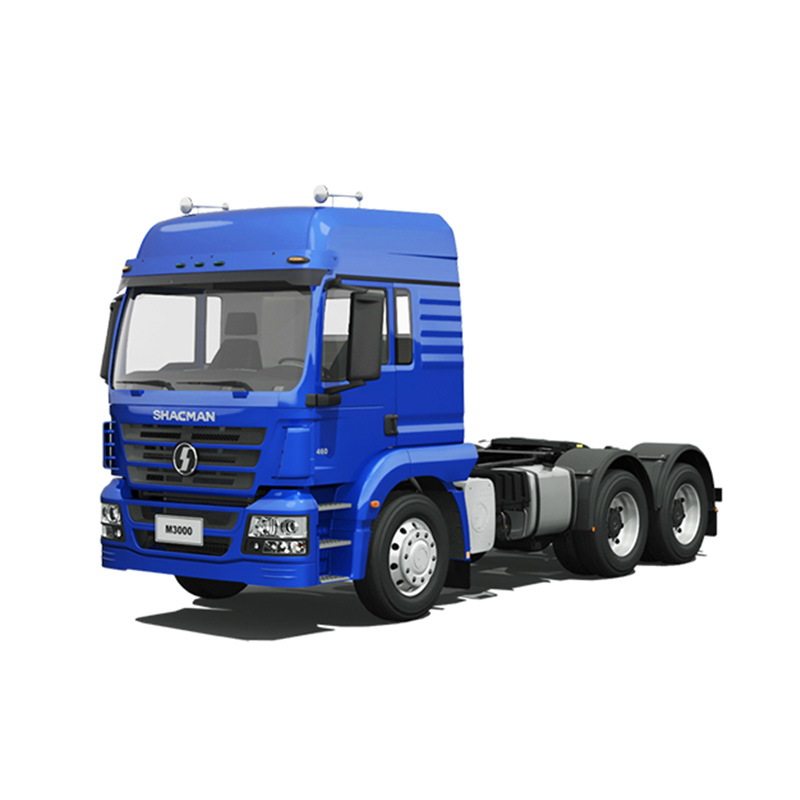

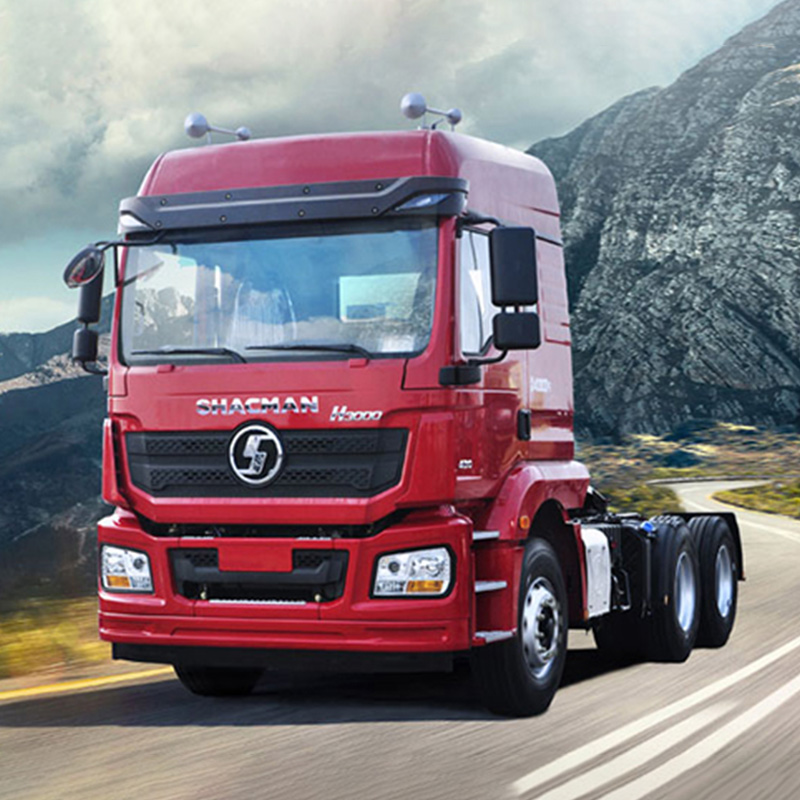

| Trailer Truck | X3000 | F3000 | H3000 | M3000 | F2000 |
| Drive type | 4×2, 6×4 | 4×2, 6×4 | 4×2, 6×4 | 4×2, 6×4 | 4×2, 6×4, 6×6 |
| Cabin | Lengthened High Roof | Lengthened High Roof (N) | Lengthened high roof (G) | Lengthened high roof (G) | Lengthened high roof (N) |
| Lengthened Flat Roof (J) | Lengthened mid roof (H) | Lengthened mid roof (H) | Lengthened flat roof (J) | ||
| Mid length flat roof (D) | |||||
| Engine | Weichai WP10 WP12 WP13; Cummins ISM Series | Weichai Power WP10, WP12, | Weichai power WP6, WP7, WP10, WP12, | Weichai power WP6, WP7, WP10, WP12, | WP10, WP12, |
| Cummins ISM Series | Cummins ISM series | Cummins ISM series | |||
| Emission Level | Euro II, III, IV, V | Euro II, III, IV, V | Euro II, III, IV, V | Euro II, III, IV, V | Euro II, III, IV, V |
| Transmission | FAST F10, F12, F16 Transmission | FAST F9, F10, F12, F16 Series | FAST F9, F10, F12 series | FAST F9, F10, F12 series | FAST F9, F10, F12 series |
| Clutch | ETONФ430 diaphragm imported, Chinese manufactured | ETONФ430 Diaphragm Imported | ETONФ430 diaphragm imported | ETONФ430 diaphragm imported | ETONФ430 diaphragm imported or Chinese manufactured |
| or Chinese manufactured | or Chinese manufactured | ||||
| Front Axle | MAN 7.5 ton (Drum) | MAN 7.5 Ton (Drum) | 7.5 ton MAN (drum) | 7.5 ton MAN (drum) | 7.5 ton MAN drum type |
| 6×4 vehicles can select 5.5 ton MAN (drum) | 6×4 vehicles can select 5.5 ton MAN (drum) | 7.5 ton MAN plate type | |||
| 6.5 ton Steyr | |||||
| Rear Axle | 13 Ton MAN, Double Reduction, 13 Ton MAN Single Reduction, 16 Ton MAN Double Casting | 13 Ton MAN Double Reduction, | 13 ton MAN double reduction, | 13 ton MAN double reduction , | 13 ton Steyr double stage enhanced (drum), |
| 13 Ton MAN Single Reduction, | with optional 13 ton MAN single reduction , | with optional 13 ton MAN single reduction, | 13 ton MAN double stage punch welding (drum), | ||
| 16 Ton MAN Double Stage Casting | or 13 ton STR double reduction | or 13 ton STR double reduction | 13 ton MAN single stage punch welding (drum) | ||
| Suspension | Multiple leaf springs configuration, few leaf springs configuration | Multi Leaf Springs, | Multi leaf springs with optional few leaf spring configuration for 6×4 vehicles | Multi leaf springs with optional few leaf spring configuration for 6×4 vehicles | Multi leaf spring configuration |
| Few Leaf Springs | |||||
| Frame（in mm） | (940-850)×300(8),850×300(8+7) | 940-850）×300（8）, | 850×270（8+5) | 850×270（8+5) | 780*243（8+5）, 850*300（8+7） |
| 850×300(8+5), | 850×270（8+4） | 850×270（8+4） | |||
| 850×300(8+7) | |||||
| Fuel Tank | 400 Liter / 600 Liter Aluminum | 400 Liter Aluminum with optional 600 Liter Aluminum for 6×4 vehicles | 300 / 400 / 600 liter aluminum | 300 / 400 / 600 liter aluminum | 300 / 400 / 600 liter aluminum, |
| 380 liter steel | |||||
| Tires | 12.00R20, 11.00R20, 12.00R22.5, 11.00R22.5 | 12.00R20, 11.00R20, | 12.00R20, 11.00R20 | 12.00R20, 11.00R20 | 12.00R20, 11.00R20, 12.00R22.5, 11.00R22.5 |
| 12.00R22.5, 11.00R22.5 | 12.00R22.5, 11.00R22.5 | 12.00R22.5, 11.00R22.5 | |||
| The fifth wheel | Regular 90 Saddle, Strengthened 90 Saddle,Lightweight 90 Saddle | Regular 90 saddle, | Regular 90 saddle | Regular 90 saddle | Regular 90 saddle, enhanced 90 saddle, lightweight 90 saddle |
| Enhanced 90 saddle, | enhanced 90 saddle | enhanced 90 saddle | |||
| Lightweight 90 saddle | lightweight 90 saddle | lightweight 90 saddle |
1. who are we?
We are based in Henan, China, start from 2013,sell to Africa(30.00%),Mid East(20.00%),South America(15.00%),South Asia(10.00%),Southeast Asia(10.00%),North America(5.00%),Domestic Market(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Eastern Europe(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dongfeng Commercial Vehicle,Dongfeng Passenger Vehicle,Auto Component,Construction Machinery,Engineering Machinery
4. why should you buy from us not from other suppliers?
Founded in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
