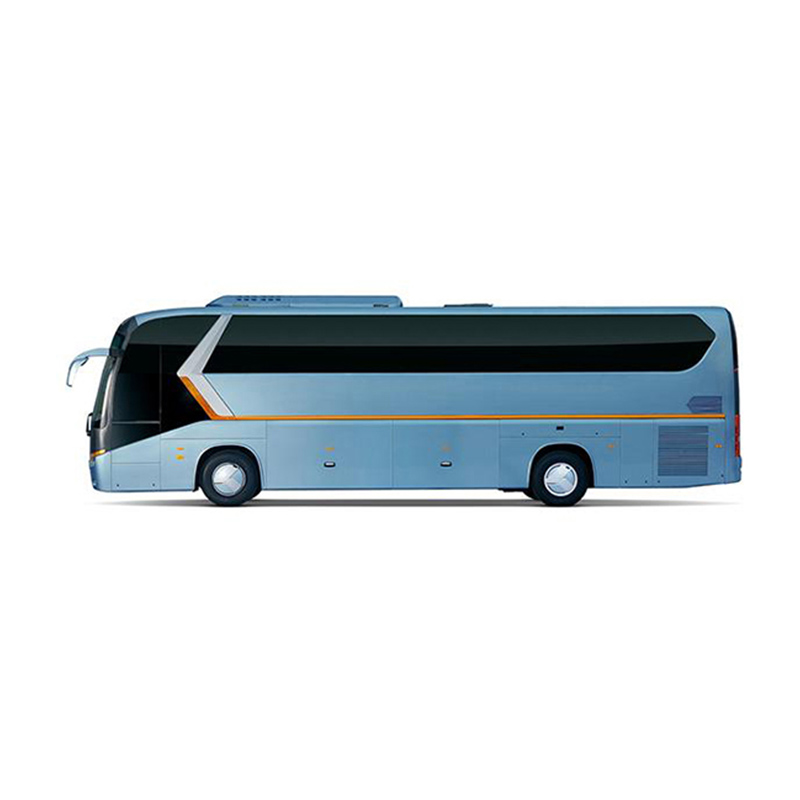

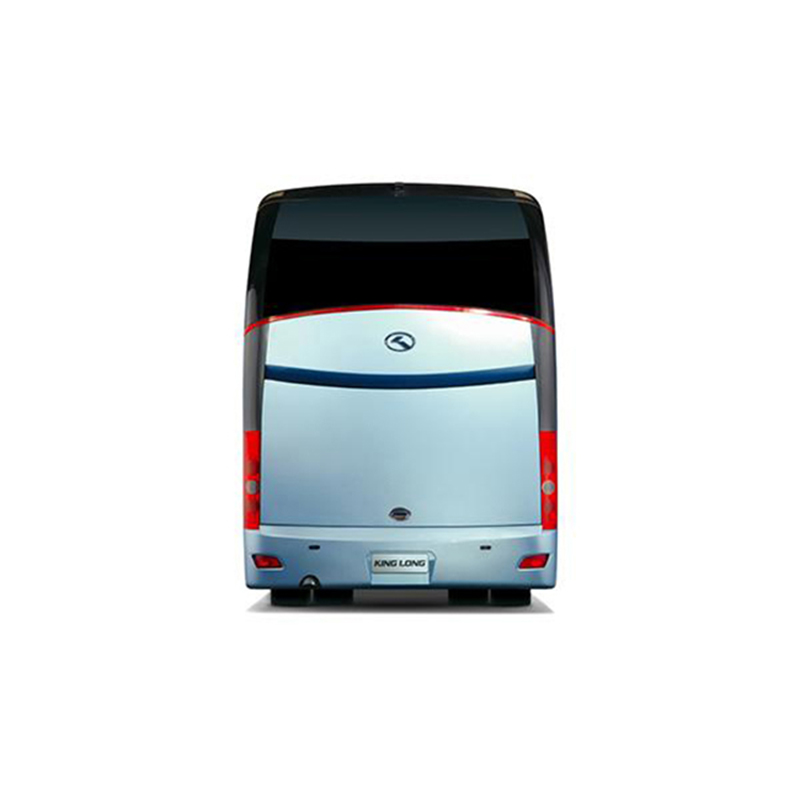

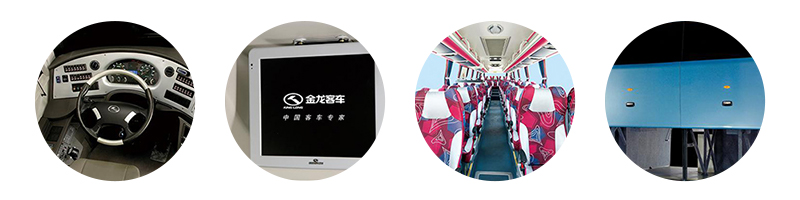

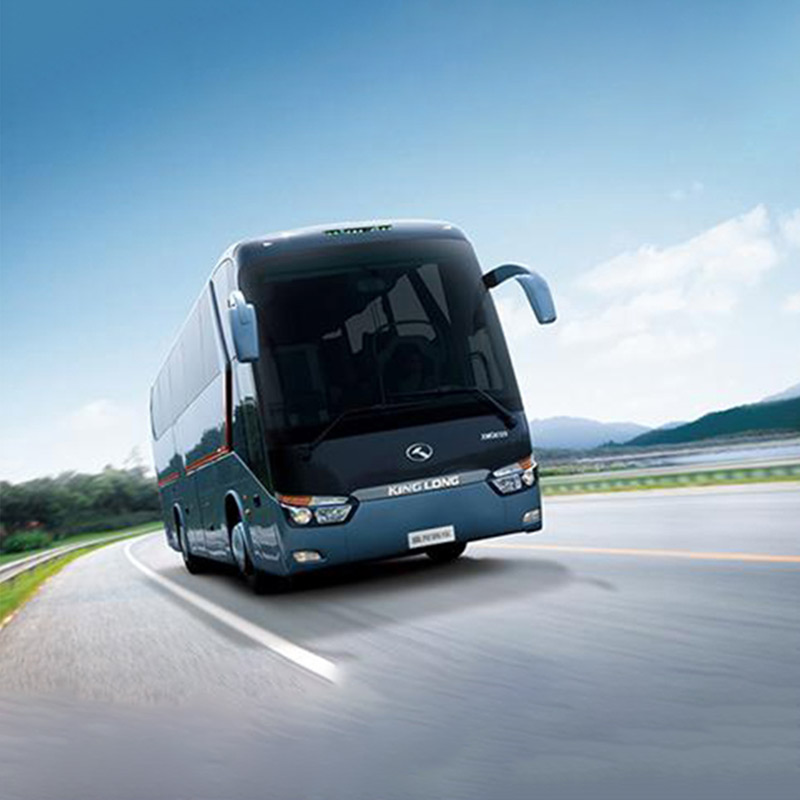

With the widened body and moulded roof in the front and rear, you could feel the spacious space once you step into this coach. Combined with comfortable seat layout and space optimization, it provides an amazing travel experience for passengers.
Coaches provide comforts that buses do not have. It typically have cavernous luggage compartments beneath the passenger area, and equipped with larger, comfortable plush seats, offering a more comfortable travel.
| MODEL | XMQ6998Y | XMQ6101Y | XMQ6129Y | XMQ6140Y |
| DIRECTION | LHD/RHD | LHD | LHD/RHD | LHD |
| DIMENSIONS | ||||
| Length*Width*Height (mm) | 9895×2480×3404/3304 (With A/C) | 10490×2480×3304/3404(With A/C） | 11950×2550×3900 (With A/C) | 13700×2550×3900(With A/C) |
| Wheelbase (mm) | 5000 | 5450 | 6000 | 6500+1500 |
| Front overhang/rear overhang (mm) | 1975/2920 | 1975/3065 | 2550/3400 | 2550/3100 |
| Minimum ground clearance (mm) | 200 | 200 | 160 | 260 |
| CAPACITY | ||||
| Seating arrangement | 41+1 | 43+1+1 | 45+1+1 | 57+1+1 |
| Fuel tank capacity (L) | 256 | 256 | 360 | 480 |
| ENGINE | ||||
| Brand | YUCHAI | YUCHAI | YUCHAI | YUCHAI |
| Model | YC6J245 30 | YC6J245-42 | YC6M340-30 | YC6M390-30 |
| Emission standard | EuroⅢ | EuroⅣ | EuroⅢ | EuroⅢ |
| Rated power (kw/rpm) | 180/2500 | 180/2500 | 250 /2100 | 288/2100 |
| Rated torque(N.m/rpm) | 890/1200-1400 | 890/1200-1700 | 1500/1100-1500 | 1680/1100-1500 |
| Displacement (L) | 6.5 | 6.5 | 9.839 | 9.839 |
| TRANSMISSION & CLUTCH | ||||
| Clutch | Chinese | Chinese | Chinese | Sachs Clutch |
| Transmission (Brand & Type) | Manual 6-gear transmission | Manual 6-gear transmission | Manual 6-gear transmission | Manual 6-gear transmission |
| AXLES | ||||
| Front | Chinese Axle | Chinese Axle | Front independent suspension (including front axle | Front axle,Middle axle |
| Rear | Chinese Axle | Chinese Axle | Chinese Axle | ZF axle |
| SUSPENSION | ||||
| Suspension system | Leaf spring | Leaf spring | 6-airbag air suspension | 6-aribag + 2-airbag air suspension |
| STEERING | ||||
| Steering system | Chinese | Chinese | BOSCH | BOSCH |
| Brake system | ||||
| Brake system (Disc/Drum) | Front/Rear Drum | Front/Rear Drum | Disc Brake System | Full disc brake |
| Tyre (Brand &Type) | Tubeless Tires | Tubeless Tires | Tubeless Tires | Tubeless Tires |
| ABS(domestic/imported) | Chinese ABS | Chinese ABS | WABCO | WABCO |
| Body | ||||
| Doors | Aluminum,remote control,out-swing doors | Aluminum,remote control,out-swing doors | Aluminum,remote control,out-swing doors | Aluminum,remote control,out-swing doors |
| Side Windows | Toughened glass | Toughened glass | Side window all closed green toughed glass | Toughened glass |
| SEATS | ||||
| Driver | Velet adjustable damping suspension driver seat | Velet adjustable damping suspension driver seat | Leather adjustable damping suspension driver seat | Leather adjustable damping suspension driver seat |
| Passenger | KING LONG | KING LONG | KING LONG | KING LONG |
| AIR CONDITIONER | ||||
| Type | KING LONG roof-mounted non-independent A/C | KING LONG roof-mounted non-independent A/C | King Long roof-mounted non-independent A/C | King Long roof-mounted non-independent A/C |
| HEATER | ||||
| Type | No heater, with independent defrosting device | No heater, with independent defrosting device | Independent hot-water heating with air blower | Independent water heating with air blower |
| MIRROR | ||||
| Type | Wide vision manual rear view mirror | Wide vision manual rear view mirror | Wide vision electric rear view mirror (with defrosting function) | Electric Rear View Mirror with Defroster |
| OTHER STANDARD EQUIPMENTS | Bus (Digital tachographer with print & display), luxurious both-side internal baggage rack (H-type), flat paint, MP3 player | CAN Bus (Digital tachographer with print & display), luxurious both-side internal baggage rack (H-type), flat paint, MP3 player | CAN bus system, K-1 type integral luggage rack (with compartment door cover plate), flat paint, 160G hard disk player, front 17″ LCD, middle 15″ electric foldable LCD, color LCD, middle door, toilet. | CAN bus system, K-1 type integral luggage rack (with compartment door cover plate), flat paint, 160G hard disk player, front 17″ fixed LCD, middle 15″ electric foldable LCD, color LCD, middle door |
