Bus Air Conditioning is the cooling, dehumidification, and filtration of the air within the passenger compartment of your vehicle.

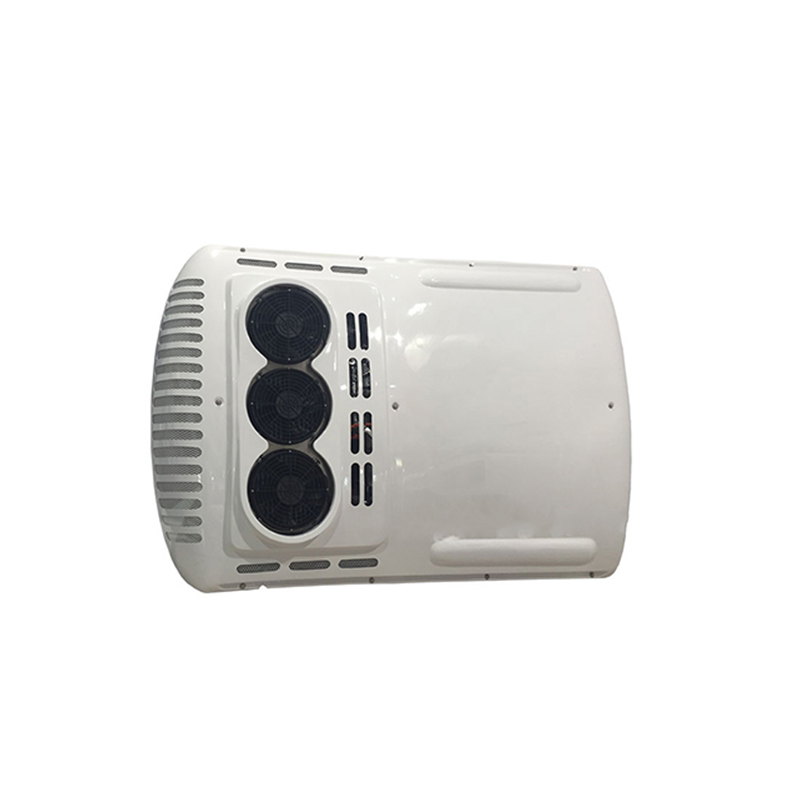

Air Conditioner for electric bus （6-7m）
| Heating Capacity | 13,000 Kcal/h /15.08kw / 52000BTU | |
| Cooling Capacity | 14000Kcal/h / 16.24kw / 56000BTU | |
| Input Voltage Range(Main power line) | DC300V~DC720V | |
| Input Voltage Range (Control system) | DC-24V 5A | |
| Rated Power Consumption | 4.5Kw | |
| Max Ambient temperature | 46 °C | |
| Refrigerant | R407c/2.5 kg | |
| Compressor | Model | ELECTRIC VARIABLE – FREQUENCY COMPRESSOR EVS34 |
| Oil Type | HAF68 | |
| Type | Copper Pipe and Aluminum foil | |
| Evaporator | ||
| Air Flow | 4000m3/h | |
| Fan Motor | 7-speed centrifugal type | |
| Type | Copper Pipe and Aluminum foil | |
| Condenser | ||
| Air Flow | 6000m3/h | |
| Fan Motor | Axial type | |
| Control Panel | Digital Control with Fault code display | |
| Control sytem | CAN bus control system with 7 speed air flow adjusting module | |
| AC Size in mm (l × w × h) | 2399× 1620 × 245.5 mm L | |
| Application | Mid Electrical Bus, Trolley bus（Tramcar） and Hybrid B | |
ES-04 Electric Bus Air Conditioner (7-8.5m Bus)
| Cooling Capacity | 18000 Kcal/h / 21kw / 71000BTU | |
| Heating Capacity | 17,200 Kcal/h /20kw / 68000BTU | |
| Input Voltage Range(Main power line) | DC400V~DC720V | |
| Input Voltage Range (Control system) | DC-24V 5A | |
| Rated Power Consumption | 6.5 Kw | |
| Max Ambient temperature | 46 °C | |
| Refrigerant | R407c/3.6 kg | |
| Model | ELECTRIC VARIABLE – FREQUENCY COMPRESSOR EVS34CCBAD-MN7A | |
| Compressor | ||
| Oil Type | HAF68 | |
| Type | Copper Pipe and Aluminum foil— Ultra light weight | |
| Evaporator | ||
| Air Flow | 4000m³/h | |
| Fan Motor | 7-speed centrifugal type EBM Brushless Blower | |
| Type | Copper Pipe and Aluminum foil— Ultra light weight | |
| Condenser | ||
| Air Flow | 8000m³/h | |
| Fan Motor | Axial type Brushless Fan | |
| Expansion Valve | Electronic expansion valve Danfoss ETS6-18 | |
| Gas-liquid Separator | QFQ1.2 KLCJ-0616 | |
| Bidirectional Dry Filter | Danfoss DCB084s KLCJ-0705 | |
| Fresh Air Device/ Fresh Air volume | KLCJ-0405/ 800 m3/h | |
| Control Panel | Control with Fault code display | |
| Control sytem | CAN bus control system with 7 speed air flow adjusting module | |
| AC Size in mm (l × w × h) )/Weight | 2500×1920×265 mm / 170.0kg, Ultra light weight | |
| Application | 7-9.0 meter Pure Electric Bus ,Trolley bus, Tram ,New Energy bus and Hybrid B | |
ES-05 Electric Bus Air Conditioner (8.5-9m Bus)
| Model | ES-05 | |
| Cooling Capacity | 2000 Kcal/h / 26kw / 104000BTU | |
| Heating Capacity | 20,600 Kcal/h /24kw / 82000BTU | |
| Input Voltage Range(Main power line) | DC400V~DC720V | |
| Input Voltage Range (Control system) | DC-24V 5A | |
| Rated Power Consumption | 8.0 Kw | |
| Max Ambient temperature | 46 °C | |
| Refrigerant | R407c/ 3.6kg | |
| Model | DC ELECTRIC VARIABLE – FREQUENCY COMPRESSOR EVS34CCBAD-MN7A | |
| Compressor | ||
| Oil Type | HAF68 | |
| Type and model | Copper Pipe and Aluminum foil / QDKT12A-012-Z/Y | |
| Evaporator | Air Flow | 6000m3/h |
| Fan Motor | 7-speed centrifugal type EBM Brushless Blower KLCJ-0131 | |
| Type and model | Copper Pipe and Aluminum foil / QDKT12A-017 | |
| Condenser | ||
| Air Flow | 8000m3/h | |
| Fan Motor | Axial type Brushless Fan KLCJ-0176 | |
| Expansion Valve | Electronic expansion valve Danfoss ETS6-18 | |
| Gas-liquid Separator | QFQ1.2 | |
| Bidirectional Dry Filter | Danfoss DCB084s KLCJ-0705 | |
| Fresh Air Device/ Fresh Air volume | KLCJ-0405 / 800 m3/h | |
| Control Panel | Control Panel with Fault code display | |
| Control sytem | CAN bus control system with 7 speed air flow adjusting module | |
| AC Size in mm (l × w × h)/ Weight | 2750×1920×285mm / 200kg | |
| Application | 9-11 meter Pure Electric Bus ,Trolley bus, Tram ,New Energy bus and Hybrid Bus | |
ES-06 Electric Bus Air Conditioner (10-12m Bus)
| Model | ES-06 | |
| Cooling Capacity | 275000Kcal/h / 32kw / 110000BTU | |
| Heating Capacity | 26,000 Kcal/h /30kw / 102000BTU | |
| Input Voltage Range(Main power line) | DC400V~DC720V | |
| Input Voltage Range (Control system) | DC-24V 5A | |
| Rated Power Consumption | 10.0Kw | |
| Max Ambient temperature | 46 °C | |
| Refrigerant | R407c/5.2 kg | |
| Compressor | Model | ELECTRIC VARIABLE – FREQUENCY COMPRESSOR EVS34CCBAD-MN7A |
| Oil Type | HAF68 | |
| Evaporator | Type | Copper Pipe and Aluminum foil QDKT09B-012-Z/Y |
| Air Flow | 6600m3/h | |
| Fan Motor | 7-speed centrifugal type EBM Brushless Blower KLCJ-0131 | |
| Condenser | Type | Copper Pipe and Aluminum foil QDKT09B-017 |
| Air Flow | 10000m3/h | |
| Fan Motor | Axial type Brushless Fan KLCJ-0176 | |
| Expansion Valve | Electronic expansion valve Danfoss ETS6-18 | |
| Gas-liquid Separator | KLCJ-0616 | |
| Bidirectional Dry Filter | Danfoss DCB084s KLCJ-0705 | |
| Fresh Air Device/ Fresh Air volume | KLCJ-0705 / 1250 m3/h | |
| Control Panel | Control with Fault code display | |
| Control system | CAN bus control system with 7 speed air flow adjusting module | |
| AC Size in mm (l × w × h) )/Weight | 3000×1920×270 mm /230Kg | |
| Application | 12.0 meter Pure Electric Bus ,Trolley bus, Tram ,New Energy bus and meter Hybrid Bus | |
1. who are we?
We are based in Henan, China, start from 2013,sell to Africa(30.00%),Mid East(20.00%),South America(15.00%),South Asia(10.00%),Southeast Asia(10.00%),North America(5.00%),Domestic Market(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Eastern Europe(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dongfeng Commercial Vehicle,Dongfeng Passenger Vehicle,Auto Component,Construction Machinery,Engineering Machinery
4. why should you buy from us not from other suppliers?
Founded in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
