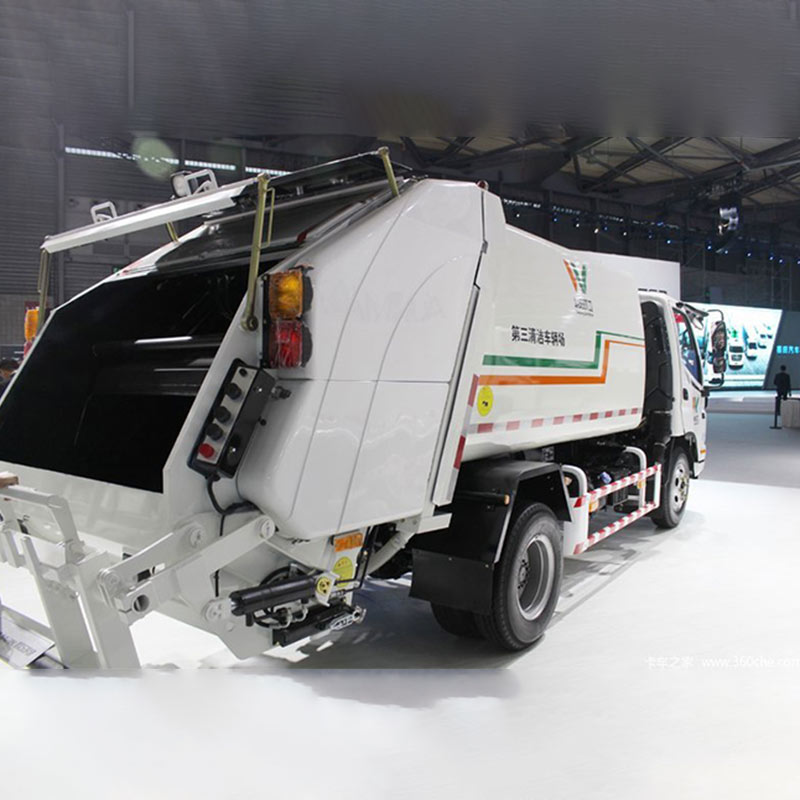

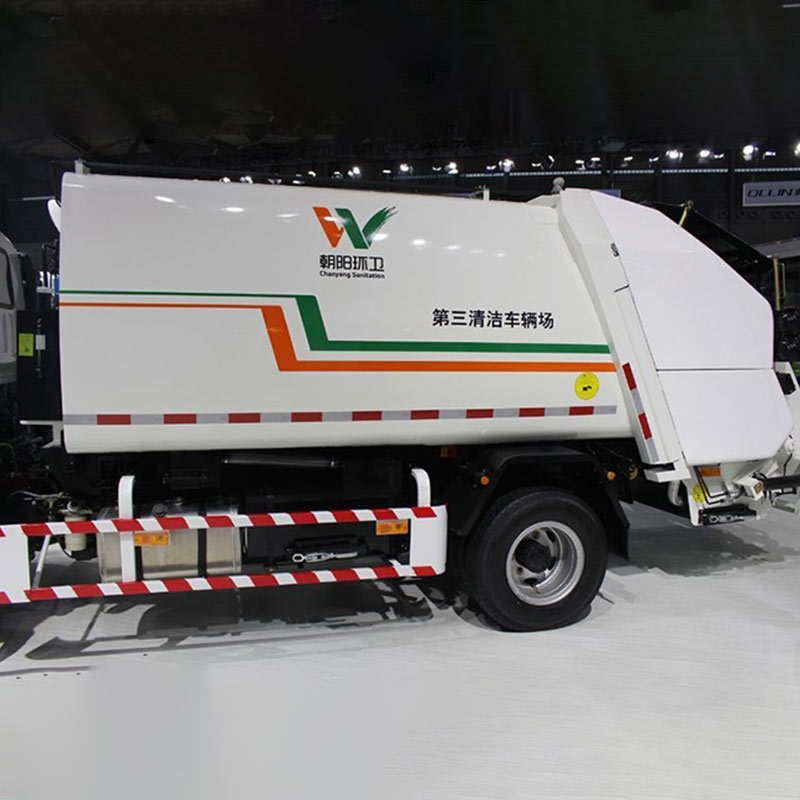

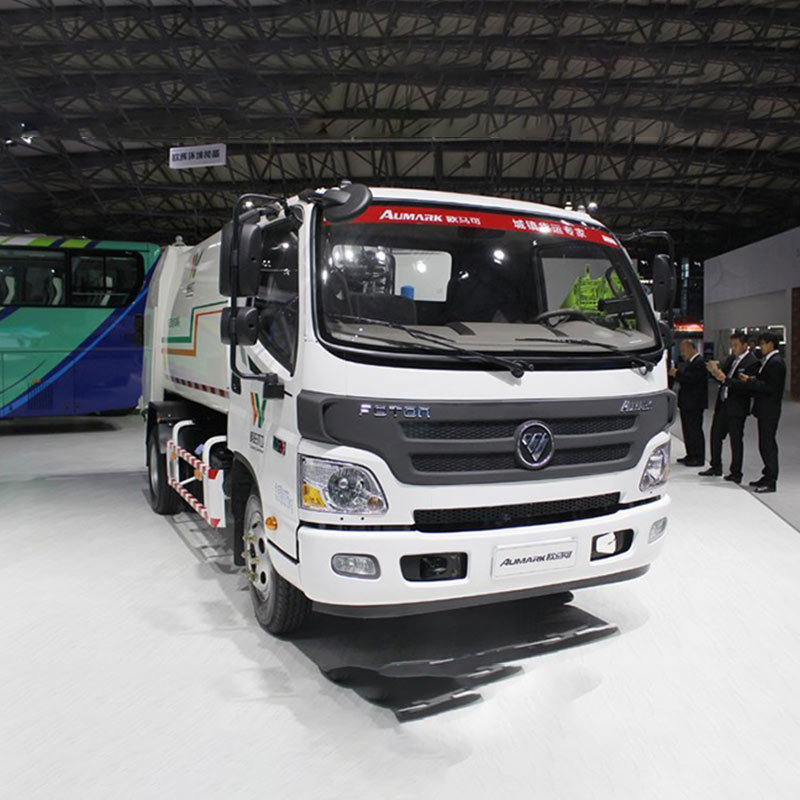

Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
The compactor truck will generally feature a hydraulically operated plate that will crush bulkier items and then compress all trash items toward a fixed plate in the truck’s bed, thereby creating more storage space for additional trash collection. Two to three operators are generally required for safe operation.
| Engine | |
| Engine: | Cummins ISF3.8E6154 |
| Displacement: | 3.76L |
| Maximum output power: | 115kW |
| Maximum horsepower: | 154HP |
| Emission Standards: | Euro III |
| Fuel type: | Diesel |
| Rated speed: | 2600rpm |
| Gearbox | |
| Gearbox: | 651B |
| Number of gears: | 6 speed |
| Chassis parameters | |
| Chassis : | Foton |
| Chassis model: | BJ5089XXY-A3 |
| Track: | |
| Number of tires: | 6 |
| Tire specifications: | 7.50R16 |
| Rear axle speed ratio: | 4.33 |
| Basic parameters | |
| Drive form: | 4×2 |
| Wheelbase: | 3360mm |
| Body size: | |
| Total quality: | 8.275ton |
| Upper structure parameters | |
| Specfication of Tank | |
| Container Capacity(m³) | 4 |
| Filling Mouth Grand Clearance（mm） | 740 |
| Filling Circulation Time（s） | 20-25 |
| Precompressor Load Time（s） | 18-22 |
| Precompressor Lifting Time（s） | 6月9日 |
| Max. Compression Strength（T） | 12 |
| Max.Discharge Strength（T） | 8 |
