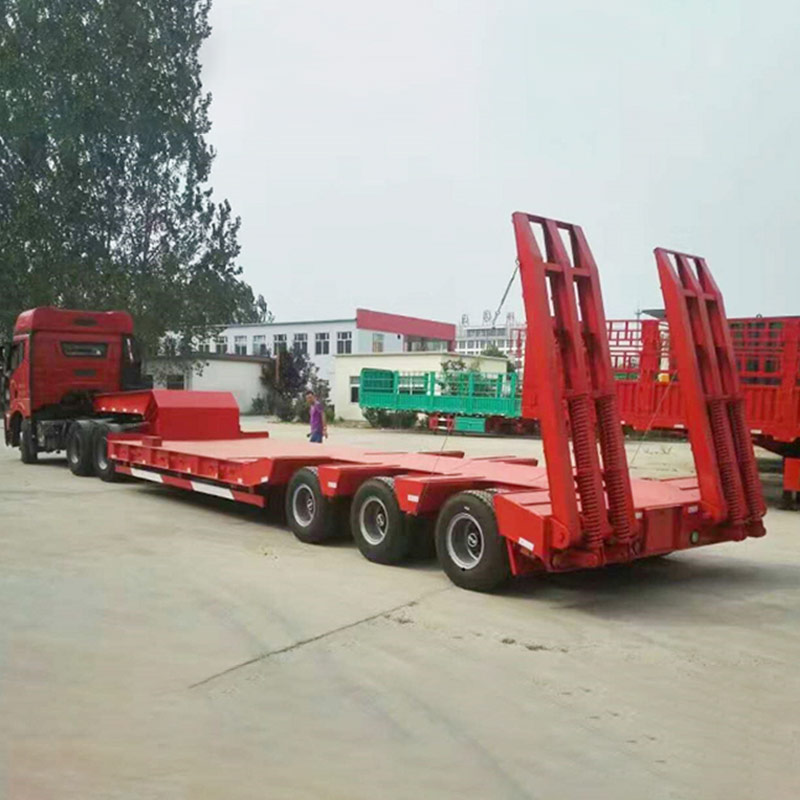

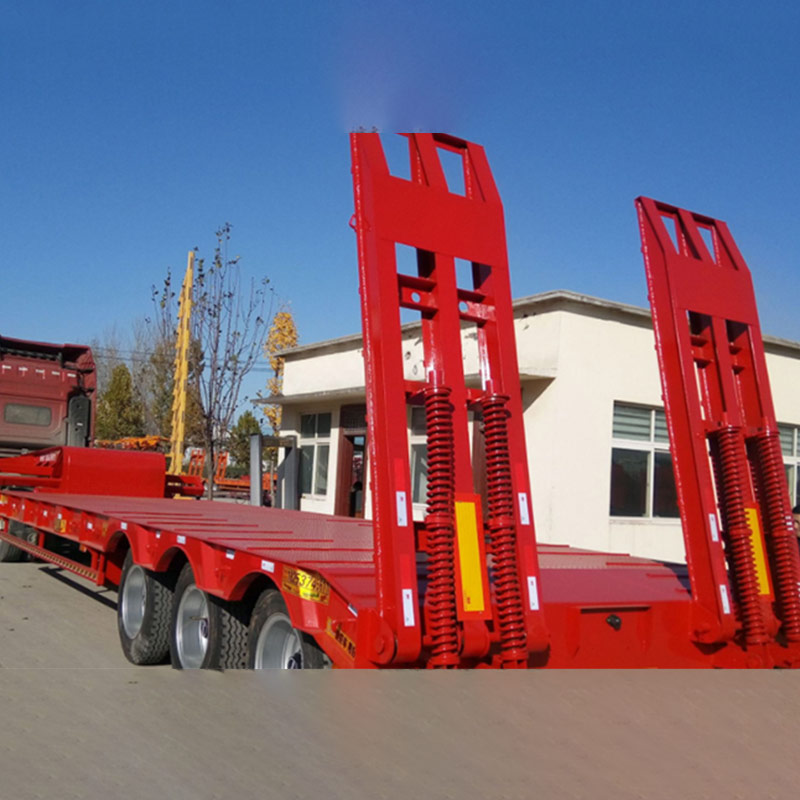

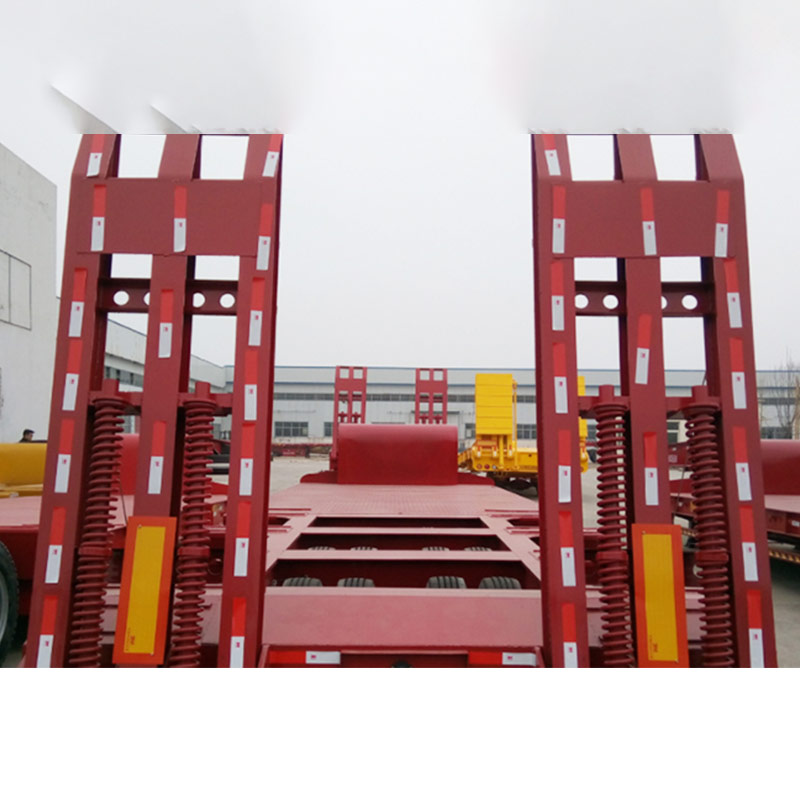

Lowbed is a type of semi-trailer used to transport heavy vehicles such as excavators, loaders, tanks designed for heavy duty.
A low-bed trailer refers to a type of flatbed trailer that has a well or middle section that is of lower height. One of the features that differentiates flatbed trailers from one another is the trailer bed height.
| 3 Axles Low Bed Semi-Trailer Parameters | ||
| DIMENSIONS | ||
| Curb Weight | 8217kg | |
| Payload | 70000kg | |
| G.V.W | 78217kg | |
| Overall Length | 13000mm | |
| Overall Width | 3000mm | |
| Overall Height | 1050mm | |
| SPECIFICATION | ||
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes 505mm Height I beam, Top Flange 14mm,width 140mm; Middle Flange 6mm ; Bottom Flange 16mm,width 140mm | |
| Floor | Upper limb:14mm; Lower limb:12mm; Plate:6mm | |
| Axle | Three Units of FUWA 16Ton axle | |
| Suspension | A couple of German Style mechanical 3-axle suspension | |
| Leaf Spring | Eight sets of reliable local brand, 10-piece leaf spring | |
| King Pin | One unit of 2“ kingpin | |
| Landing Gear | Two-speed , manual operating, heavy duty landing gear | |
| Wheel Rim | Twelve units of 8.0-22.5 rim | |
| Tyre | Twelve units of Triangle 12R22.5 tyre | |
| Twist Lock | Eight nos. of ISO twist lock for 2x20ft;1x40ft container, the central locks can be laid down. | |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. | |
| Pneumatic Braking System | Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber two units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. | |
| Electrical System | One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector , Side lamp etc. | |
| One set of DAFA(brand ) 6-core standard Cable. | ||
| Painting | Sand blasting processing clean rust | |
| One coat of anticorrosive primer | ||
| Two coats of finish urethane paint | ||
| Color as customer choice | ||
| Accessory | One tooling box with a set of standard trailer tool | |
1. who are we?
We are based in Henan, China, start from 2013,sell to Africa(30.00%),Mid East(20.00%),South America(15.00%),South Asia(10.00%),Southeast Asia(10.00%),North America(5.00%),Domestic Market(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Eastern Europe(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dongfeng Commercial Vehicle,Dongfeng Passenger Vehicle,Auto Component,Construction Machinery,Engineering Machinery
4. why should you buy from us not from other suppliers?
Founded in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
