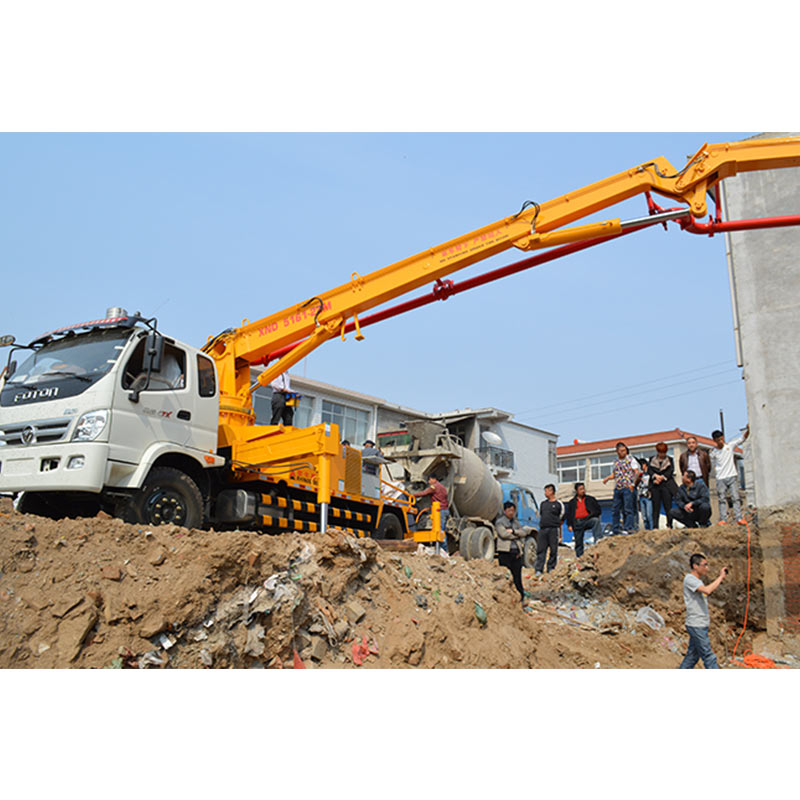

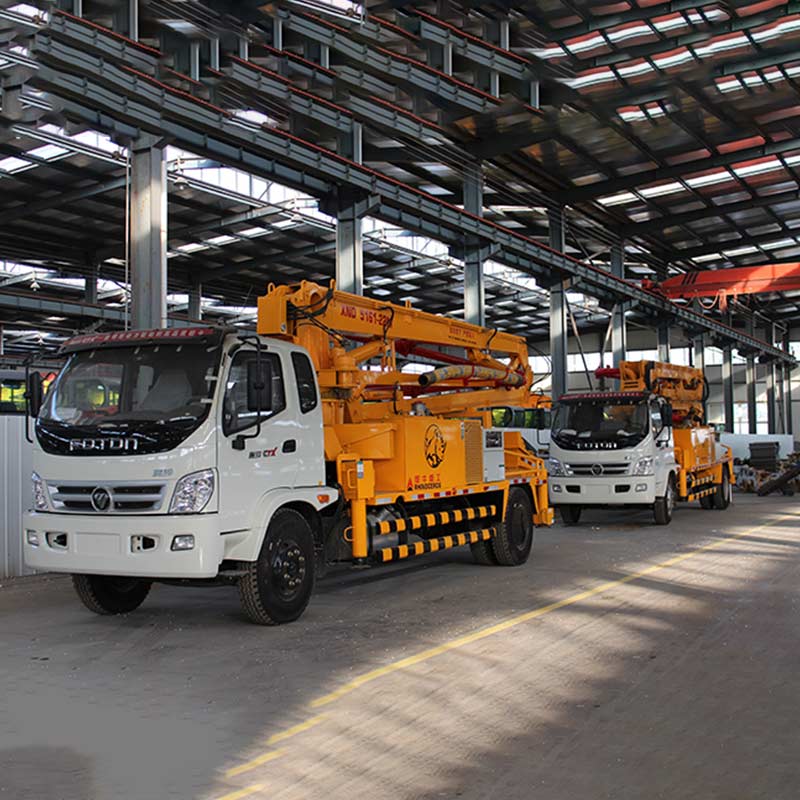

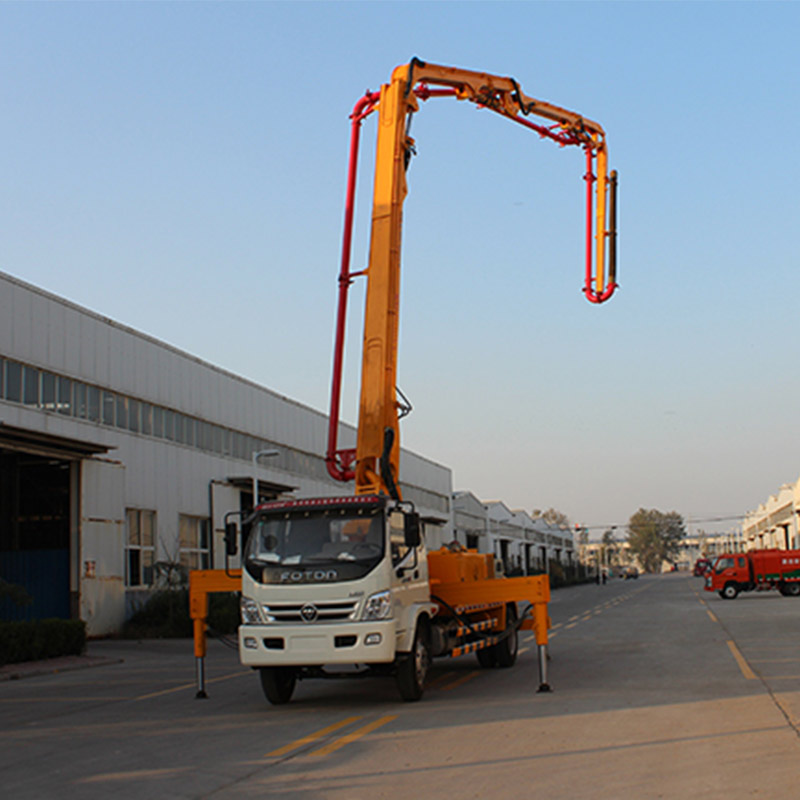

Foton concrete pump truck is made in China by Beiqi Foton Motor Co., Ltd. The company is located in Beijing, in Beijing Municipality, China.
Special concrete transport trucks (in-transit mixers) are made to mix concrete and transport it to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. They can also be loaded from a “central mix” plant; with this process the material has already been mixed prior to loading. The concrete mixing transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery. The interior of the drum on a concrete mixing truck is fitted with a spiral blade.
| MODEL | XND5161-26M | ||
| Vehicle Dimension | Length | 9600 mm | |
| Width | 2400 mm | ||
| Height | 3400 mm | ||
| Total weight | 15200 kg | ||
| Boom & outrigger | No. of section | 4 | |
| Vertical reach | 26m | ||
| Horizontal reach | 21.48 m | ||
| Reach depth | 12m | ||
| 1st section | length | 6900 mm | |
| Articulation | 90° | ||
| 2nd section | length | 5010 mm | |
| Articulation | 180° | ||
| 3rd section | length | 5010 mm | |
| Articulation | 270° | ||
| 4th section | length | 4565 mm | |
| Articulation | 220° | ||
| 5th section | length | / | |
| Articulation | / | ||
| Rotation | ±360° | ||
| Distrance of front outriggers out | 5200mm | ||
| Distrance of rear outriggers out | 4900mm | ||
| Distance of F-R outrigger out | 5550mm | ||
| Pumping system | Theoretically output | 65 /75 m3/h | |
| Max. Strokes per minutes | 16 times/min | ||
| Delivery cylinder diameter | 200 / 230 mm | ||
| Stroke length | 1800 mm | ||
| Hydraulic system | Open loop | ||
| Hydraulic system oil pressure | 32 MPa | ||
| Outlet pressure | 6.8 / 10 Mpa | ||
| Oil tank capacity | 600 L | ||
| Water tank capacity | 400 L | ||
| Pipe line size | 125 mm | ||
| End hose length | 3 m | ||
| End horse diameter | 125 mm | ||
| Chassis | Chassis model | DFM | |
| Engine power | CUMMINS (170 hp) | ||
| Emission standard | National IV | ||
| Displacement | 3760ml | ||
| Max. speed | 110km/h | ||
| Ground clearance | 260 mm | ||
| Wheel base | 5200mm | ||
| Front wheel track | 1830mm | ||
| Rear wheel track | 1880mm | ||
1. who are we?
We are based in Henan, China, start from 2013,sell to Africa(30.00%),Mid East(20.00%),South America(15.00%),South Asia(10.00%),Southeast Asia(10.00%),North America(5.00%),Domestic Market(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Eastern Europe(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dongfeng Commercial Vehicle,Dongfeng Passenger Vehicle,Auto Component,Construction Machinery,Engineering Machinery
4. why should you buy from us not from other suppliers?
Founded in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
