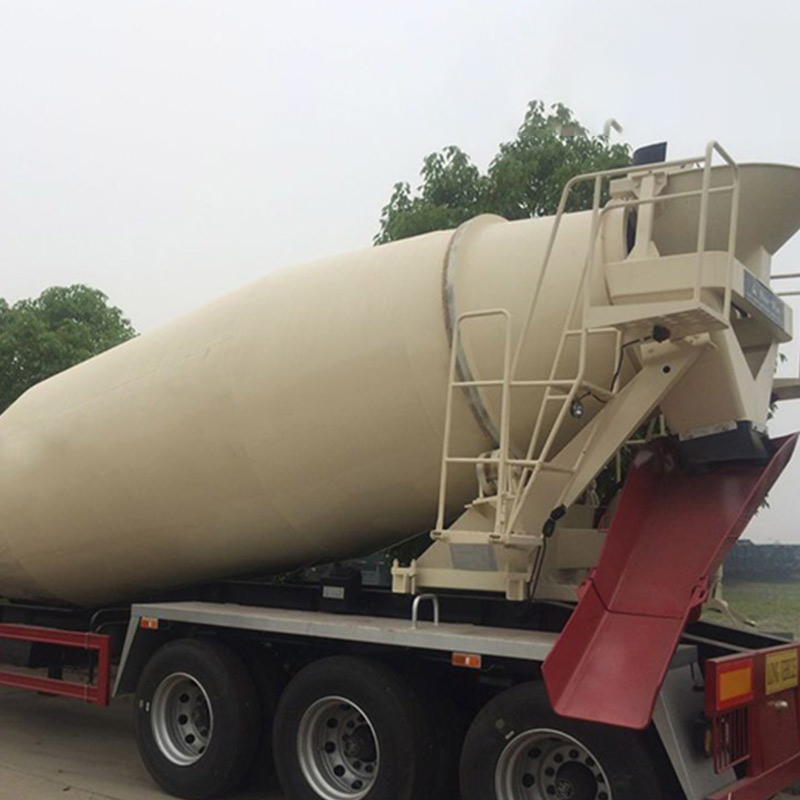

Concrete Mixing Trailers allow for the continuous mixing of concrete while traveling between locations. They feature hydraulic rotation and tilt, large mixing blades, and ball pintel.
Concrete mixers mounted on semi-trailers offer a huge flexibility. They can be released from the tractor unit with great ease, allowing the use of this resource in other tasks while the concrete mixer remains at the site or during periods of low concrete demand.
| 12m3 3 axle concrete mixer semi trailer | ||
| Basic Parameter | ||
| Overall Size | 9500×2500×3850 mm | |
| Number of axle | 3 | |
| Mixer body size | 12m³ | |
| Mixer body | ||
| Material | Q345 | |
| End plate | 6mm | |
| Mixer body | 6mm | |
| Mixer blade | 5mm | |
| Feeding speed m³/min | ≥3 | |
| Discharge speed m³/min | ≥3.5 | |
| Residule rate % | ≤012% | |
| Rotation speed (rpm) | 0-16 | |
| Power | Diesel engine | CUMMINS brand 140 hp, max torque 502 N.m |
| Hydraulic system | Hydraulic reduer | Italy TOP |
| Hydraulic pump | Italy ARK | |
| Hydraulic Motor | Italy ARK | |
| Radiator | YS-26 | |
| Cleaning system | Water tank capacity | 350 L |
| Water supply | By air pressure | |
| Chassis | ||
| Beam | I beam | |
| Axle | 3*13 Ton FUWA axle | |
| Tyre | 12R22.5 tubeless tyre with one spare | |
| Landing gear | JOST 28 Ton | |
| Suspension | FUWA heavy duty spring suspension | |
